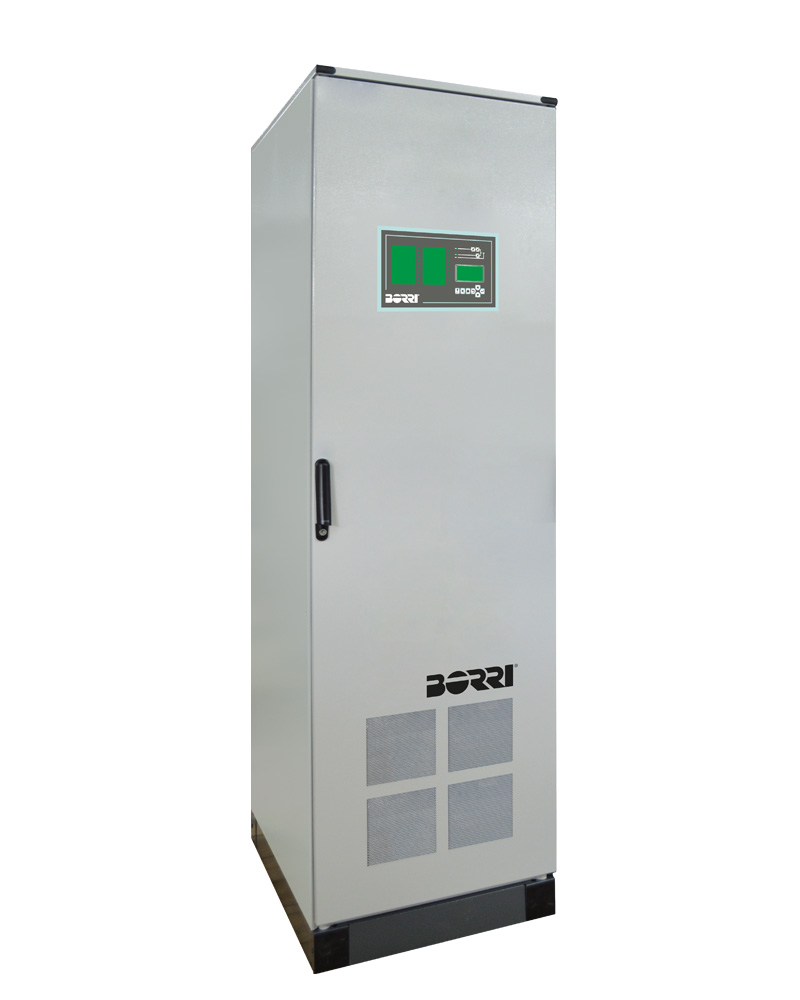

  • Borri Inverter IMB 5-200 kVA

IMB

Industrial 1-phase Inverter 5-200 kVA

Borri AC Industrial 1-Ph Inverter IMB is designed and manufactured to withstand harsh environment and operating conditions of industrial applications with state-of-the-art technology, providing reliable and customizable AC power backup solutions.

Borri’s IMB is a heavy-duty AC Industrial Inverter with output galvanic isolation. The Inverter design ensures very high reliability, safe operations, full front access for easy maintenance and a very low mean time to repair (MTTR), achieving the highest possible availability.

The design flexibility allows it to meet almost any customer specification. IMB Inverter is an industrial solution delivering reliability, availability and maintainability in almost any environmental conditions.

  • Large LCD panel with mimic diagram and history.
  • Wide selection of alarms, indications and measurements.
  • Built-in inverter transformer.
  • PWM IGBT Inverter Bridge.
  • Built-in manual bypass.
  • Flexible in-built features.
  • Highly customizable.
  • Easy maintenance and serviceability.
  • Active parallel configuration via CANBUS connection.
  • Standard configuration for cost-effective, short lead time solutions.
  • Electronic current limit.
  • 20 programmable alarm and status LEDs.
  • Built-in inverter transformer.
  • Communication ports and potential free contacts.

Applications

Tech Specs

IMB: Industrial 1-phase Inverter 5-200 kVA

Rating (kVA)* @ P.F. 0.8 vs DC Rated Voltage

48 Vdc** 5 10 15 20 - - - - - - - - -
110 Vdc 5 10 15 20 30 40 50 - - - - - -
220 Vdc 5 10 15 20 30 40 50 60 80 100 - - -
400 Vdc - - - - - - 50 60 80 100 120 160 200
Nominal power kW 4 8 12 16 24 32 40 48 64 80 96 128 160

*other ratings available on request **conditions apply

Input

DC voltage 48 Vdc (40÷70 Vdc range) / 110 Vdc (90÷160 Vdc range) / 220 Vdc (180÷300 Vdc range) / 400 Vdc (320÷480 Vdc range)
Bypass input voltage 110/115/120 or 220/230/240 Vac 1-phase ±20%
(adjustable according to inverter output voltage)

Output

Nominal voltage 110/115/120/220/230/240 Vac 1-phase
Frequency 50/60 Hz (selectable), ±0.001 Hz free running, ±2 Hz synchronized with mains
Voltage regulation ±1% static; ±5% dynamic (80% load change), <40 ms recovery time
Overload capacity 125% for 10 min; 150% for 1 min; 200% for 100 ms
Harmonic Distortion THDv <2% linear load; <5% non-linear load

System

Dimensions From 600 mm to 2400 mm width, 800/1000 mm depth, 2100 height
Cooling Forced ventilation (optional redundant fans)
Colour RAL 7035 (optional other colours)
Protection degree IP 20 as per IEC 60529 (optional up to IP 54)

Environmental

Operating temperature -10°C to 40°C (up to 55°C with de-rating) / Storage: -20°C to 70°C
Altitude <1000 m (up to 2000 m de-rating according to EN 62040-3)
Audible noise at 1 meter (dBA) 65 to 70 (depending on rating and options)

User Interface

Front panel Graphic display, mimic LED panel, function keys, local EPO
Connectivity Included: USB, alarm relay card, terminal block for auxiliary contacts

Standards

Quality assurance, environment, health and safety: ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007
Safety IEC EN 62040-1
EMC IEC EN 62040-2
Environmental aspects IEC EN 62040-4
Test and performance IEC EN 62040-3 VFI-SS-111
Protection degree IEC 60529
Marking CE (CSA/UL certified as optional)
