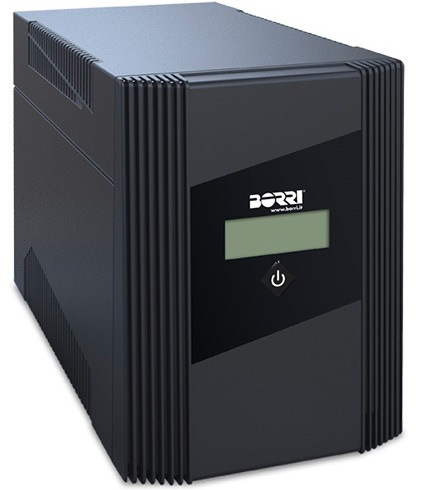

GIOTTO

Line-interactive 1-phase UPS 450-2000 VA

Giotto line-interactive single phase UPS is ideal for home and small office, computer and peripherals. Giotto UPS ensures your systems availability and protects your equipments and peripherals from power failures causing data loss and hardware damage.

  • User-friendly, plug and play, ready to use.
  • Compact and noiseless, to be placed anywhere.
  • Energy efficient, ensuring low energy costs and environmental impact.
  • Free downloadable software.
  • Automatic Voltage Regulator (AVR).
  • Cold start.
  • Auto shutdown in the event of a mains fail.
  • Smart LCD Display.
  • User-replaceable battery.
  • Filtered socket protection against overvoltage for LAN/ADSL.
  • USB port for direct PC connection.
  • Borri Power Guardian user-friendly UPS management software with main power failures alert and system shutdown notification via SMS / email. Free downloadable at www.borri.it/download-pdf.
  • Line-interactive UPS with VI technology.
  • AVR technology (Automatic Voltage Regulation).
  • Full compliance with all international product standards.
  • Cold start function. The UPS can be started from battery when AC utility is not available.
  • USB and RJ-11/45 ports.
  • One output receptacle IEC 320-C13 and one Schuko for models from 450 to 850 VA.

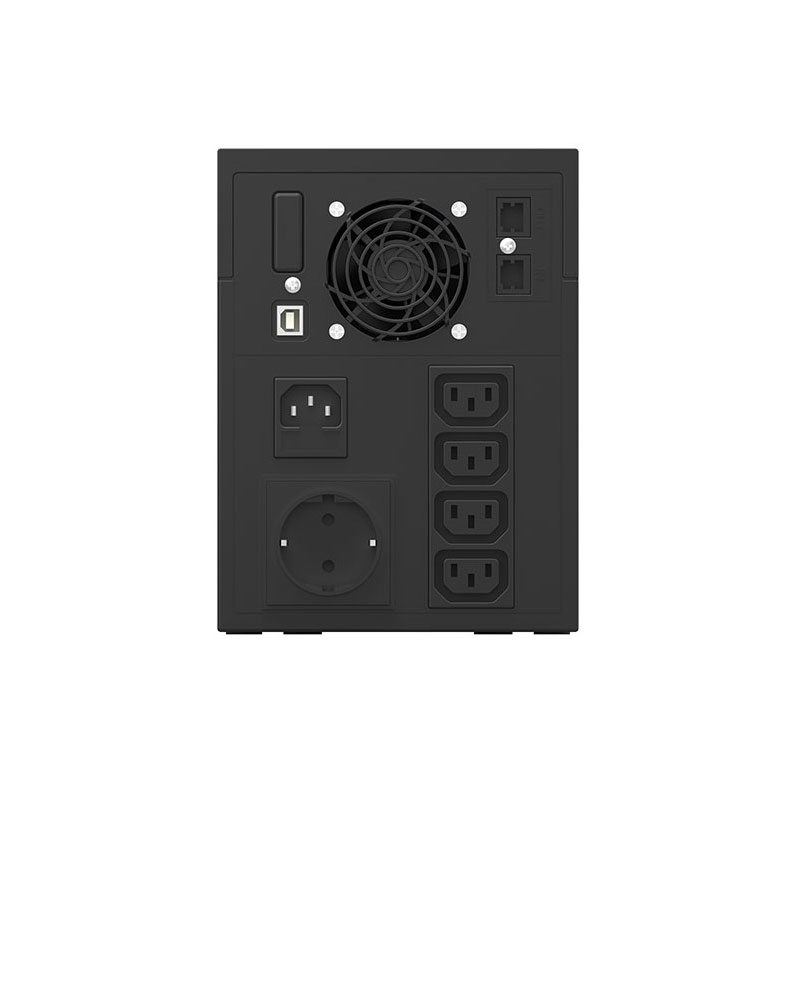

  • Four output receptacles IEC 320-C13 and one Schuko for models from 1000 to 2000 VA.

Applications

Warranty

Tech Specs

GIOTTO: line-interactive 1-phase UPS 450-2000 VA

Rating (VA) 450 650 850 1000 1500 2000
Nominal power (W) 270 380 500 600 900 1200
UPS dimensions WxDxH (mm) 100x292x140 148x315x198
UPS weight (kg) 4 5 5.5 9 10.5 11.8

Input

Connection type IEC 320-C14
Nominal voltage 230 Vac 1-phase
Voltage range 160 to 290 Vac
Frequency and range 50/60 Hz, 45 to 65 Hz

Output

Connection type
 1 IEC 320-C13 and 1 Schuko 4 IEC 320-C13 and 1 Schuko
Nominal voltage 230 Vac 1-phase
Frequency 50/60 Hz
Waveform Simulated sine wave

Battery

Autonomy time (min)*
 50% load 5 5 5 6 5 4
100% load 3 3 3 3 3 2

* Measurement conditions: optimised parameters, fully charged battery, 0.6 PF

Connectivity and function extensions

Front panel
LCD, ON/OFF button
Communication Included: USB.
Compatible platforms: Windows, Linux, Mac

Environmental

Operating temperature range
 0°C to +40°C
Altitude (AMSL) < 1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m
Audible noise at 1m (dBA) <40

Standards and certifications

Quality assurance, environment, health and safety ISO 9001:2015, ISO 14001:2015, BS OHSAS 18001:2007
Safety IEC EN 62040-1
EMC IEC EN 62040-2
Marking CE
