GALILEO RT

On-line 1-phase UPS 1000-3000 VA

Galileo RT single phase UPS is the on-line Rack/Tower version of Galileo series. Galileo RT UPS is ideal for small and medium businesses, networks and servers. High level of protection for networking equipment, security systems and critical applications.

  • On-line double conversion UPS from 1000 to 3000 VA.

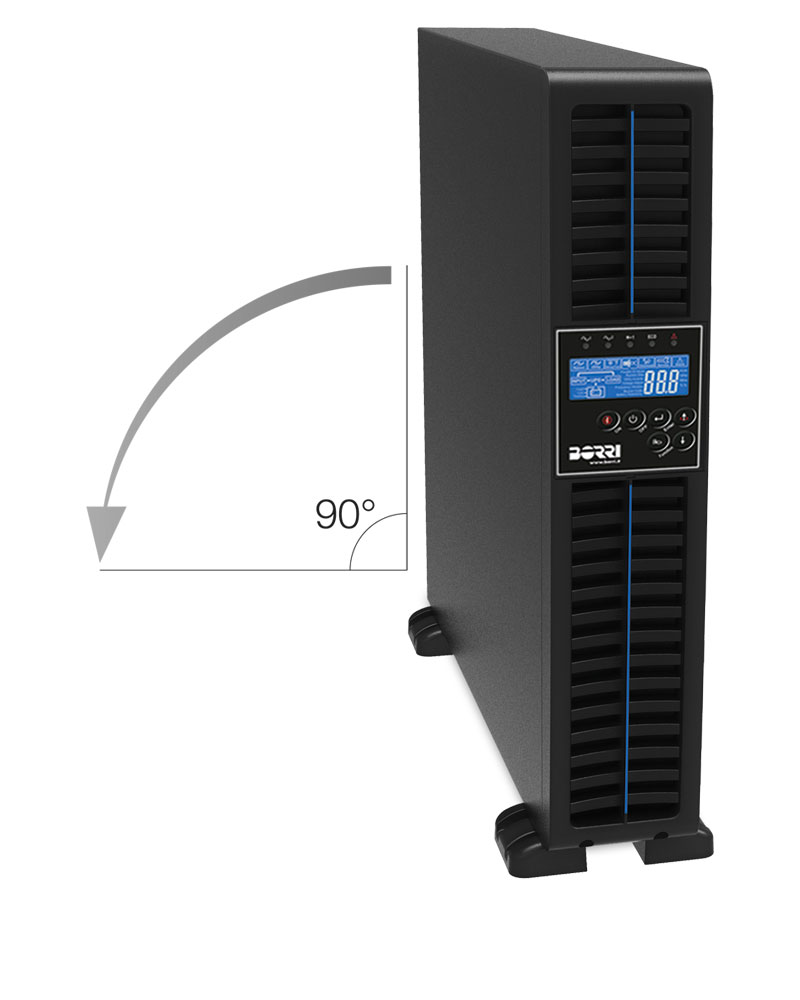

  • Available in a flexible Rack/Tower 2U design allowing the unit to be configured for rack-mount or free standing applications.
  • High efficiency reducing energy costs and environmental impact.
  • Easy installation and set up.
  • Extendable runtime.
  • On-Line double conversion technology protects from all power failures for maximum uptime.
  • Active harmonic power quality control with THD <3% for maximum upstream sources.
  • Easy user-replaceable battery.
  • Battery extension box allowing additional autonomy time to be quickly added.
  • Automatic self-test and advanced battery management maximizing battery performance and extending battery life.
  • Borri Power Guardian user-friendly UPS management software with main power failures alert and system shutdown notification via SMS / email. Free downloadable at www.borri.it/download-pdf.
  • Input Power Factor 0.99 and THD <3%.
  • High double conversion efficiency and ECO mode for low running costs and environmental impact.
  • Smart cooling system ensuring further energy savings.
  • Full compliance with all international product standards.
  • Programmable switched outlet group for setting load priorities.
  • Remote emergency power off for immediate UPS shutdown.
  • Audible alarm alerts upon utility power and UPS status change.
  • One slot auto-sensing for communication cards.
  • USB and RS232 communication ports included.

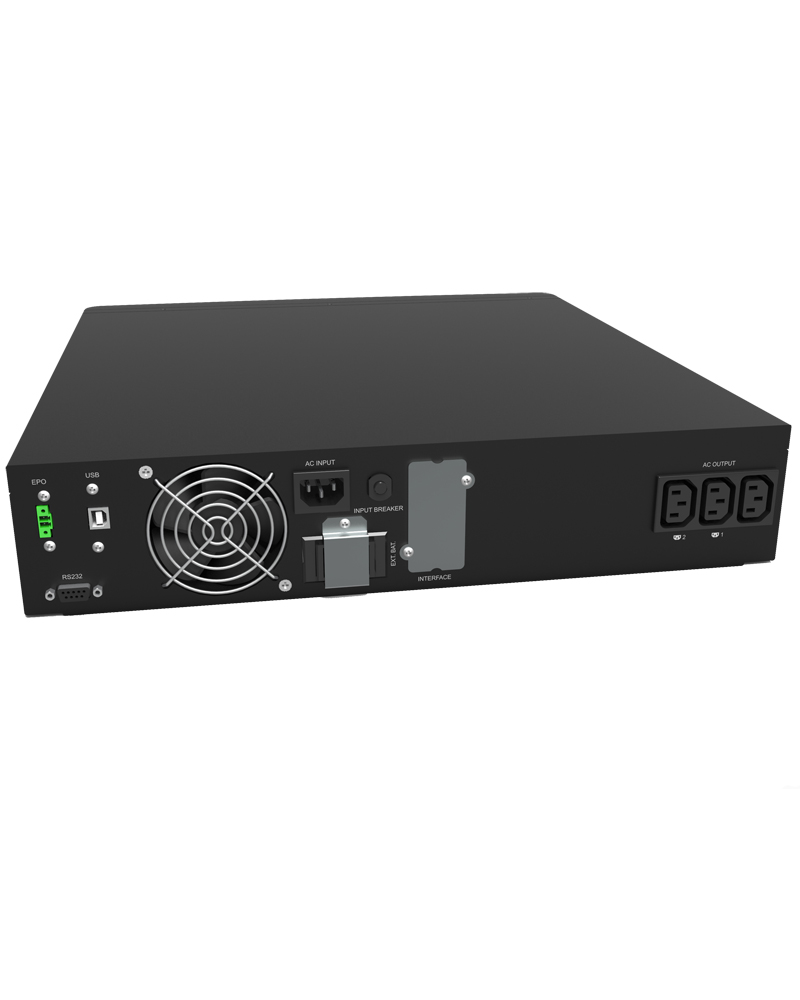

  • Three output receptacles (IEC 320-C13) for 1000 VA version.

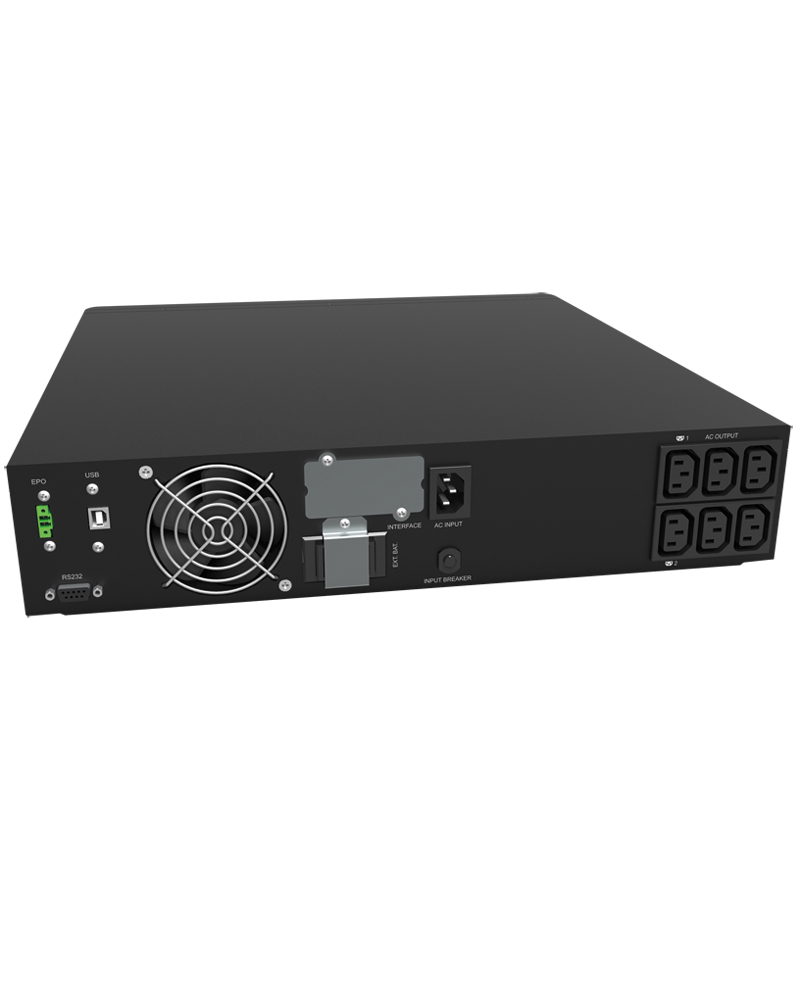

  • Six output receptacles (IEC 320-C13) for models from 2000 to 3000 VA versions.

Tech Specs

GALILEO RT: on-line 1-phase UPS 1000-3000 VA

UPS Type RT (2U)* RT (2U)* RT (2U)*
Rating (VA) 1000 2000 3000
Nominal power (W) 900 1800 2700
UPS dimensions WxDxH (mm) 440x390x88 440x475x88 440x600x88
UPS weight (kg) 12 17 26.5

Input

Connection type IEC 320-C14 IEC 320-C20
Nominal voltage 230 Vac 1-phase
Voltage range 195 to 260 Vac
Frequency and range 50/60 Hz, 45 to 65 Hz
Power factor 0.99
Current distortion (THDi) <3%

Output

Connection type 3 IEC 320-C13 6 IEC 320-C13
Nominal voltage 230 Vac +/-1% 1-phase
Frequency 50/60 Hz
Power factor Up to 0.9 without power derating
Overload capability 105% continuous, 120% for 30 seconds,
150% for 10 seconds, >150% transfer to bypass
Mode of operation On-line, Eco-mode

Battery

Autonomy time
internal battery
(min)*
50% load 12 13 15
100% load 6 6 6

*Rack/Tower ◆ Measurement conditions: optimised parameters, fully charged battery, 0.7 PF

Connectivity and function extensions

Front panel Display LCD, status LED, function keys
Communication Included: USB, EPO, RS232.
Optional: dry contact card, SNMP card.
Compatible platforms: Windows, Linux, Mac

Environmental

Operating temperature range 0°C to +40°C
Altitude (AMSL) <1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m
Audible noise at 1 m (dBA) <50

Standards and certifications

Quality assurance,
environment, health and safety
ISO 9001, ISO 14001, ISO 45001
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2
Marking CE
