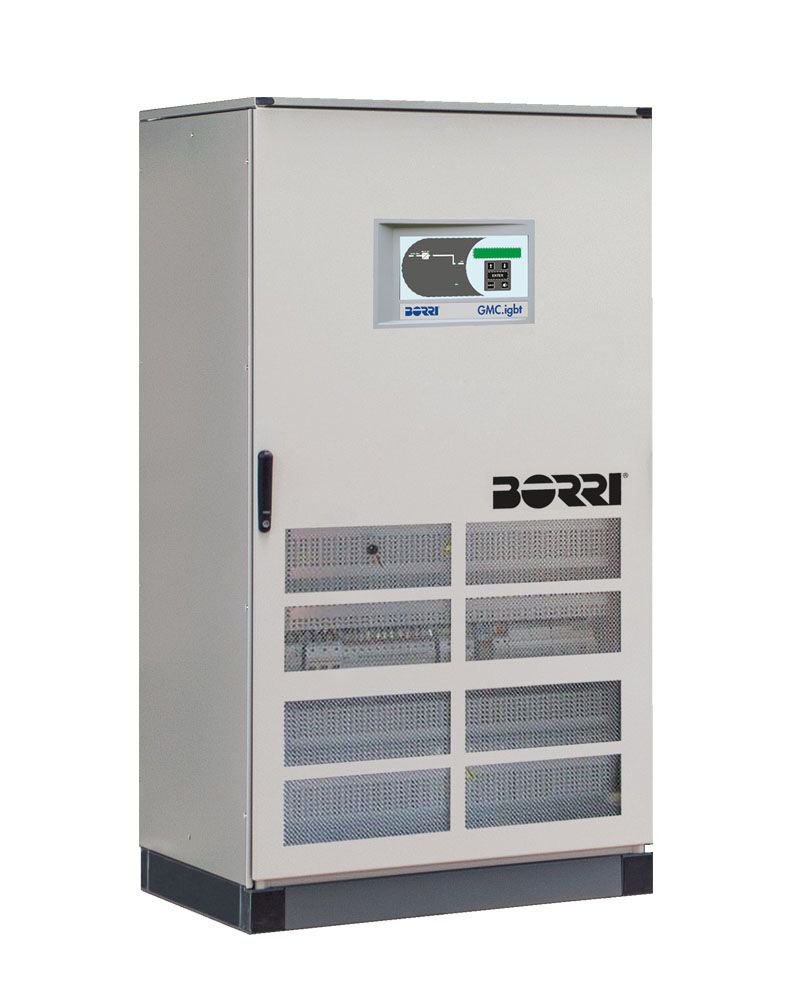

  • Borri GMC.igbt Mobility Charger

GMC.igbt

Green Mobility Chargers for E-Bus

Borri’s IGBT opportunity chargers allow the charging of electric bus fleets while at bus stops or turnaround points. Borri GMC.igbt offers clean, efficient powerful charging results in ultra short charging times and keeps your electric bus running all day.
Short charging sessions allow no scheduled disruptions to bus routes, optimizing operations and uptime. Borri GMC.igbt is a highly efficient and cost-effective solution to meet future implementation.

The system is fully scalable and with a protection degree up to IP 54 enclosure for indoor or outdoor installations. Borri’s 85 years of experience in industrial chargers and UPSs guarantee the highest reliability keeping your fleets’ battery charged at all times.
Chargers can be connected to CCS-plug and or to pantographs.

  • IGBT technology for clean efficient power.
  • High efficiency >98% with sleep mode.
  • Low THDi < 3%.
  • Input PF > 0.99.
  • Ultra-fast charging.
  • Short charging sessions allow no schedule disruption.
  • Fully scalable system.
  • Event history.

Applications

Tech Specs

GMC.igbt: Green Mobility Chargers for E-Bus

Rating (kW) 150 300 600
Rated DC output current (A) 300 600 1000
Dimensions WxDxH (mm) 1000x
800x
2100		 1200x
800x
2100		 1400x
800x
2100
Weight (kg) 750 1050 1650

Input

Connection type Hardwired 3w + PE
Nominal voltage 380/400/415 Vac 3-phase
Voltage tolerance -20%, +15%
Frequency 50/60 Hz ±5 Hz
Power factor > 0.99
Current distortion (THDi) < 3%

Output

Output DC voltage range 460 to 900 Vdc

System and environmental

Cooling Forced ventilation (redundant fans optional)
Efficiency Up to 98%
Colour RAL 7035 (other colours on request)
Protection degree IP 20 for indoor installation / IP 54 for outdoor installation
Operating temperature -20° to 40° C (optional temperature 50° C)
Storage temperature -20 °C to +70 °C
Altitude < 1000m without power reduction, > 1000m with reduction of 0.5% x 100m
Options Many options for customization available

User Interface

Front panel LCD display (touch screen as optional)
Connectivity SPDT contact relay card, RS232.
Optional: RS485 Modbus-RTU serial ports, ModBus-TCP/IP, GPRS/3G modem,
ModBus to PROFIBUS DP adapter, remote monitoring software

Standards

Safety IEC EN 55011
EMC IEC EN 61000-6-2
Marking CE
