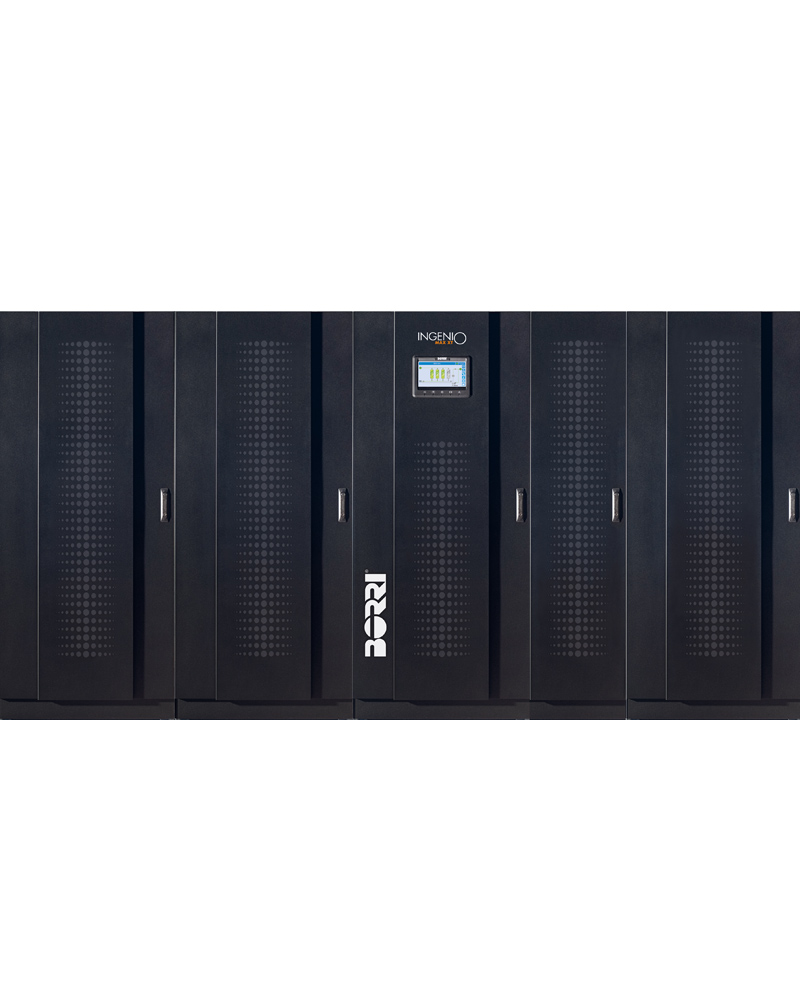

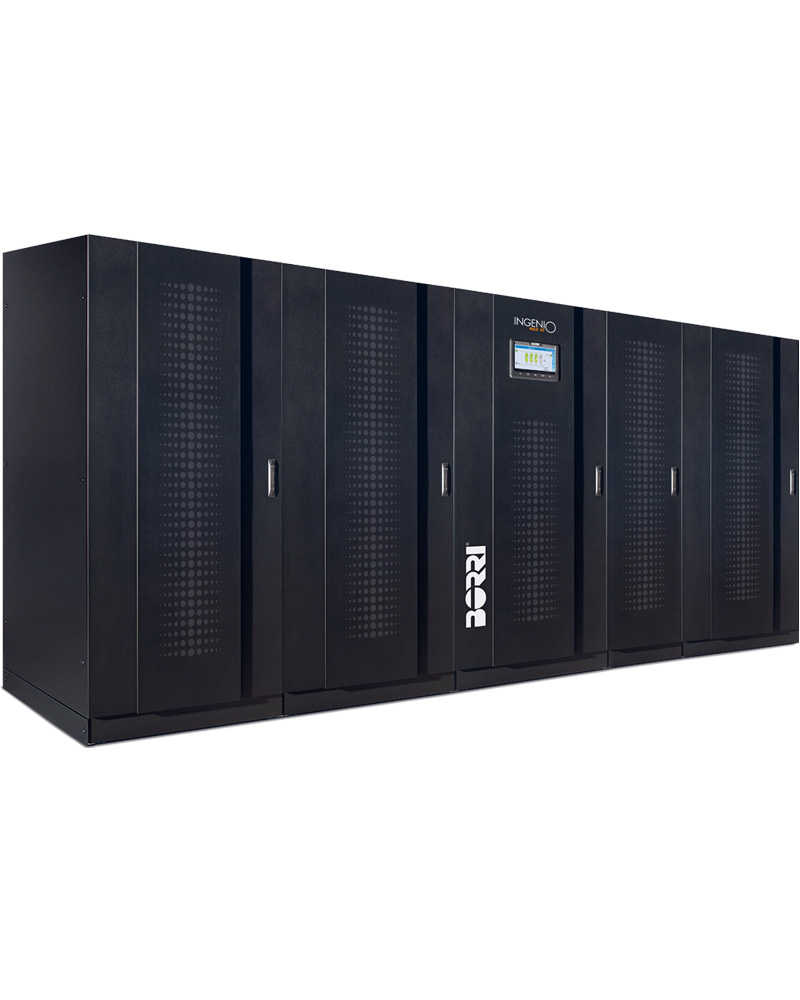

INGENIO MAX XT

Scalable Hi-Power UPS up to 2.1 MW

INGENIO MAX XT power protection system can be configured with 250 kW or 300 kW MPM power modules. Power expansion or redundancy can be implemented at a later stage by installing additional MPM modules up to 2.1 MW without needing to put the UPS on bypass (*).

Thanks to its flexible design and installation you can meet your diverse business needs, either to grow or to revamp your mission-critical applications.

*optional

  • The system is scalable up to 2.1 MW unit power, for N+1, N+N and A+B redundant configurations, using fully rated 250 kW or 300 kW MPM power modules up to 40°C ambient temperature, to adapt to all facility needs.
  • The 3-L Green Conversion inverter technology helps increase UPS reliability and availability.
  • Flexible layout options help achieve constraint free positioning to fit any technical room space.
  • Replaceable dust filters add full protection in dusty environment.
  • The system can be used with different energy storage solutions, including Lead Acid and Li-ion batteries.
  • A centralized colour touch screen display provides all the user info and history information at a glance.
  • 250 kW and 300 kW modules.
  • Hot scalable (as optional) up to 2.1 MW.
  • Configurable internal redundancy provides a fault-tolerant design (N+1 or N+N).
  • A 125% continuous-duty static switch provides robust overload capabilities.
  • Hot maintainable modules (VFI) reduce mean time to repair and ensure no system downtime.
  • Automatic battery test function.
  • Compact footprint.
  • 3-L patented Green Conversion Technology.
  • Up to 97% VFI efficiency even at low power.
  • ECO mode up to 99% efficiency.
  • Low audible noise levels.
  • System Design Flexibility.
  • Total Installation Flexibility.
  • Lowest total cost of ownership.

Tech Specs

INGENIO MAX XT 900 kW- 2.1 MW UPS

Rating (kVA) 900 1000 1200 1250 1500 1800 2100
N nominal power (kW) 900 1000 1200 1250 1500 1800 2100
N+1 nominal power (kW) 600 750 900 1000 1200 1500 1800
MPM module size (kW) 300 250 300 250 300 300 300
UPS dimensions
WxDxH (mm)*
3440x
970x
2100
4320x
970x
2100
4320x
970x
2100
5200x
970x
2100
5650x
970x
2100
6930x
970x
2100
7810x
970x
2100
UPS weight (kg)* 3590 4470 4470 5350 5350 6330 7210
Battery configuration External 360 to 372 cells, VRLA (other options)

* referred to common battery, central bypass static switch, bottom cable entry. For other configurations contact our sales team.

Input

Connection type Hardwired 4w (rectifier), 4w (bypass)
Nominal voltage 400 Vac 3-phase with neutral (rectifier), 380/400/415 Vac 3-phase with neutral (bypass)
Voltage tolerance -20%, +15% (rectifier); ±10% (bypass)
Frequency and range 50/60 Hz, 45 to 65 Hz
Power factor 0.99
Current distortion (THDi) <3%

Output

Connection type Hardwired 4w
Nominal voltage 380/400/415 Vac 3-phase with neutral
Frequency 50/60 Hz
Voltage regulation (VFI) Static: ±1%;
dynamic: IEC/EN 62040-3 Class 1
Power factor 0.7 leading to 0.5 lagging without derating
Overload capability Inverter: 125% for 10 min, 150% for 1 min;
bypass: 120% continuous, 1000% for 1 cycle
AC/AC efficiency** Up to 99%
Classification as per
IEC/EN 62040-3
VFI-SS-111

** according to IEC/EN 62040-3.

Connectivity and function extensions

Front panel 10” colour touch screen display, 1024x600 pixels
Remote communication Included: serial RS232 and USB; input terminal block (remote emergency power off, battery circuit breaker aux. cont., external maintenance bypass circuit breaker aux. cont., diesel mode aux. cont., external output circuit breaker aux. cont., remote transfer to bypass mode); SPDT contact relay board; ModBus-RTU (RS485).
Optional: ModBus-TCP/IP (Ethernet); ModBus-RTU to PROFIBUS DP adapter
Optional function extensions Isolation transformer; custom battery cabinets; battery thermal probe; load-sync; other options on request

System

Protection degree IP 20
Colour RAL 9005
Installation layout Wall, back to back and side by side installation allowed
Accessibility Front and top access, bottom or top cable entry
Parallel configuration Up to 2.1 MW

Environmental

Operating temperature 0°C to +40°C
Storage temperature -10°C to +70°C
Altitude (AMSL) < 1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m
Audible noise at 1m (dBA) 65

Standards and certifications

Quality assurance, environment,
health and safety
ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2
Environmental aspects IEC/EN 62040-4
Test and performance IEC/EN 62040-3
Protection degree IEC 60529
Marking CE
